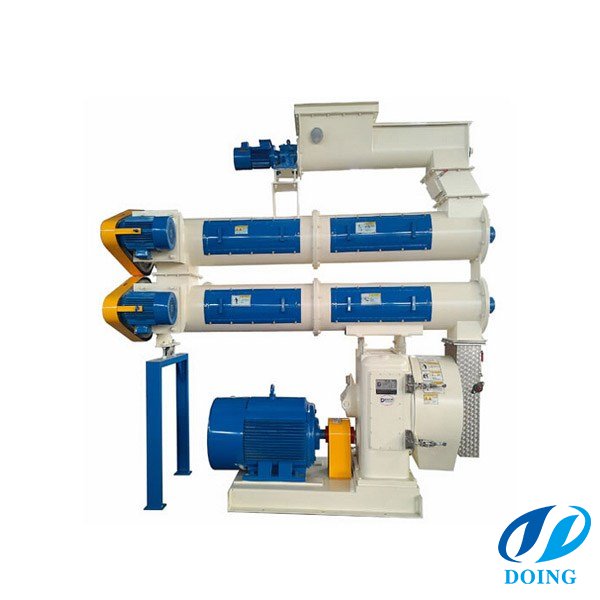

Ring die animal feed pellet mill

Ring die animal feed pellet mill

Reasonable price ring die animal feed pellet mill introduction
Item: Agricultural animal feed pellet equippment
Applications of ring die animal feed pellet mill: Suitable for the production of poultry feed, livestock feed and aquaculture feed.

Technical Parameters of ring die animal feed pellet mill :
- Capacity of ring die animal feed pellet mill: 0.5t/h-50t/h
- Dimensions of ring die animal feed pellet mill: Designed according to specific requirements
- Power consumption of ring die animal feed pellet mill: would be listed in the quotation, actual consumption is 20-30% lower than theory.
- Guide installation and commissioning is available

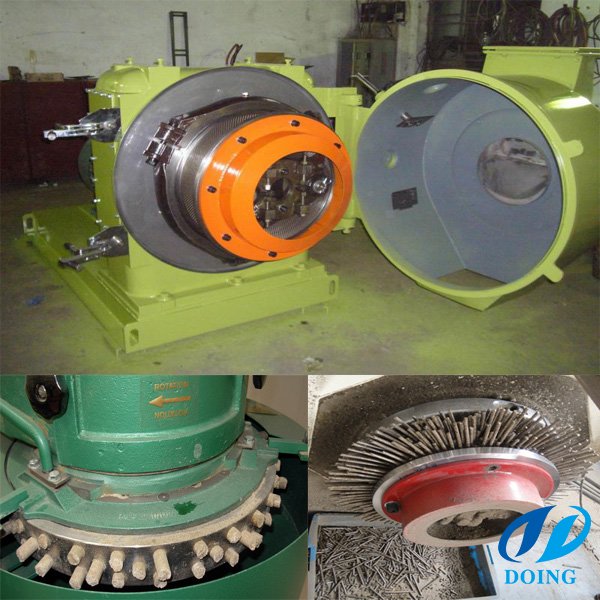

Ring die animal feed pellet mill and some parts of pellet mill

Features of ring die animal feed pellet mill
- Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy.
- Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.
- Stainless steel conditioner extends the conditioning and cooking time.
- Axial steam spraying port, improving feed cooking efficiency.
- High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

Main technical parameter of ring die animal feed pellet mill

Model Parameters	DYZL320	DYZL350	DYZL400	DYZL420	DYZL508
Capacity (t/h)	0.2-0.5	0.3-0.8	0.8-1.2	1.0-1.5	1.5-2.0
Main Power(kw)	37	45/55	75/90	90	110/132
Conditioner Power(kw)	2.2	3.0	4.0	5.5	4/5.5
Feeder Power(kw)	0.75	1.1	1.5	1.5	1.5/2.2
Inside Dia(mm)	320	350	400	420	508
Pellet Size(mm)	6-8	6-8	6-8	6-8	6-8










Raw material for ring die animal feed pellet mill
Suitable raw material for ring die animal feed pellet mill:corn, maize, grass, grains, molasses, wheat, beans etc..

---
